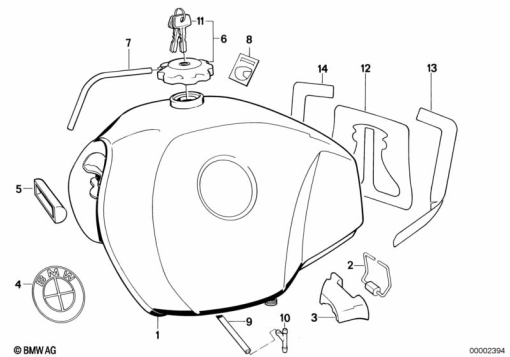

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 2 307 759 | FUEL TANK PRIME COATED - SHED | 1 | |
| 2 | 16 11 2 307 004 | RETAINER | 1 | |
| 3 | 16 11 2 307 014 | DISTANCE RUBBER | 1 | |
| 4 | 52 53 7 686 465 | BADGE - D=82MM | 1 | |
| 5 | 16 11 1 236 124 | DISTANCE RUBBER | 1 | |
| 6 | 16 11 1 453 817 | LOCKABLE FILLER CAP | 1 | |
| – | 16 11 1 453 910 | GASKET | 1 | |
| 7 | 16 13 2 307 010 | HOSE - 1330MM | 1 | |
| 8 | 51 14 1 453 617 | LABEL - HELM | 1 | |
| 9 | 13 11 1 338 115 | BULK MATERIAL, FUEL HOSE - 6X11 (meter) | 1 | |
| 10 | 13 11 1 254 083 | DISTRIBUTION PIECE | 1 | |
| 11 | 16 11 1 236 349 | STANDARD KEY (CODE) | 1 | |
| 12 | 51 14 2 307 099 | BASE | 1 | |
| 13 | 51 14 2 307 131 | FOIL LEFT | 1 | |
| 14 | 51 14 2 307 132 | FOIL RIGHT | 1 |
