R100GS (47E1) | Fuel Preparation

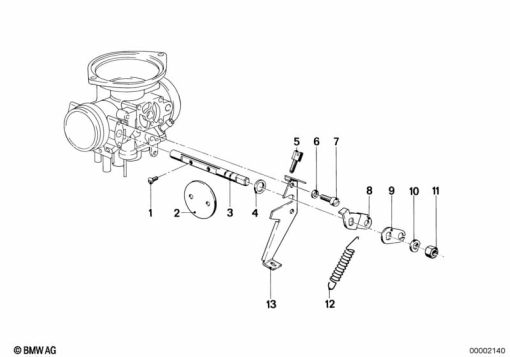

CARBURETOR/THROTTLE CONTROL
Diagram #13_0477 | 15 parts | 3 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 11 1 254 738 | CSK.FILLISTER HEAD SREW | 1 | |
| 2 | 13 11 1 335 605 | THROTTLE | 1 | |
| 3 | 13 11 1 336 585 | SHAFT | 1 | |
| 4 | 13 11 1 254 739 | GASKET RING | 1 | |
| 5 | 13 11 1 335 311 | ADJUSTER | 1 | |
| 6 | 13 11 1 335 306 | SPRING WASHER | 1 | |
| 7 | 13 11 1 337 362 | FILLISTER-HEAD SCREW | 1 | |
| 8 | 13 11 1 335 607 | LEVER RIGHT | 1 | |
| 8 | 13 11 1 335 609 | LEVER LEFT | 1 | |
| 9 | 13 11 1 335 608 | THROTTLE LEVER | 1 | |
| 10 | 13 11 1 254 759 | WAVE WASHER | 1 | |
| 11 | 13 11 1 254 760 | 13 11 1 254 760 | 2 | |
| 12 | 13 11 1 335 606 | TENSION SPRING | 1 | |
| 13 | 13 11 1 335 304 | SUPPORT LEFT | 1 | |
| 13 | 13 11 1 335 305 | SUPPORT RIGHT | 1 |
