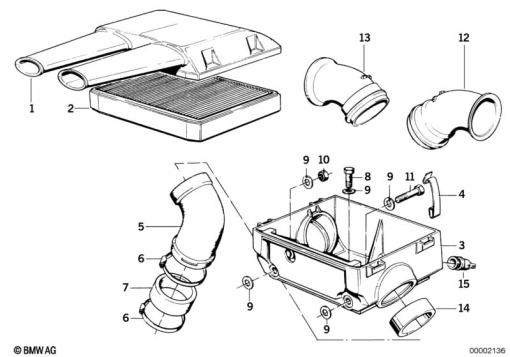

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 72 1 337 675 | AIR CLEANER HOUSING TOP | - | |
| 2 | 13 72 1 337 080P | K&N AIR FILTER | - | |
13 72 9 062 492 | AIR FILTER ELEMENTAlternative for position 2 | - | ||
| 4 | 13 72 1 337 105 | 0.02 | - | |
| 5 | 13 72 1 335 700 | SUCTION PIPE | - | |
| 6 | 07 12 9 952 123 | HOSE CLAMP - L=53-60MM | - | |
| 7 | 13 72 1 264 392 | RUBBER GROMMET - 50X59X30 | - | |
| 8 | 07 11 9 904 040 | HEX BOLT - M8X22-8.8-ZNS3 | - | |
| 9 | 13 72 1 337 205 | WASHER - 8.4X16X3 | - | |
| 10 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 12/95) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 10 | - | ||
| 11 | 07 11 9 901 033 | FILLISTER-HEAD SCREW - M8X45-8.8 | - | |
| 12 | 13 72 1 337 233 | FUNNEL LEFT | - | |
| 13 | 13 72 1 337 078 | FUNNEL RIGHT | - | |
| 14 | 13 72 1 337 229 | PIPE | - | |
| 15 | 13 72 1 337 162 | RUBBER VALVE | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
