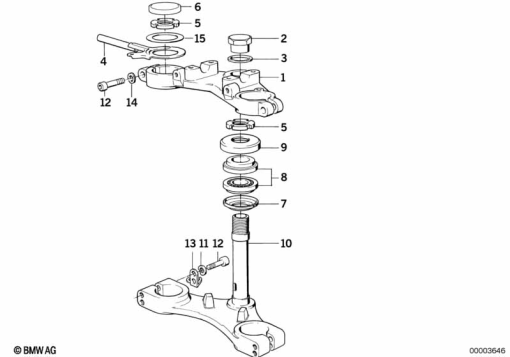

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 1 457 828 | UPPER FORK CROSS BRACE | - | |
| 2 | 31 42 1 457 859 | SCREW | - | |
| 3 | 31 42 1 457 860 | WASHER | - | |
| 4 | 31 42 1 244 561 | TURN INDICATOR HOLDER, BLACK, LEFT - D=31.5MM | - | |
31 42 1 244 562 | TURN INDICATOR HOLDER, BLACK, RIGHT - D=31.5MMAlternative for position 4 | - | ||
| 5 | 31 42 1 232 343 | NUT - M28X1.5 | - | |
| 6 | 31 42 1 458 081 | 0.01 | - | |
| 7 | 31 42 1 234 509 | RING | - | |
| 8 | 31 42 7 663 941 | TAPERED ROLLER BEARING - 28X52X16 | - | |
07 11 9 985 070SET | STEERING HEAD BEARING SETAlternative for position 8 | - | ||
| 9 | 31 42 2 000 312 | PROTECTION CAP | - | |
| 10 | 31 42 1 458 104 | LOWER FORK CROSS BRACE | - | |
| 11 | 07 11 9 931 697 | WASHER - 8,4 | - | |
07 11 9 904 826 | WasherAlternative for position 11 | - | ||
| 12 | 07 12 9 906 694 | ISA SCREW - M8X55-8.8-ZNNIV | - | |
07 11 9 919 651 | SOCKET HEAD CAP SCREWAlternative for position 12 | - | ||
| 13 | 31 42 1 457 233 | HOSE CLAMP | - | |
| 14 | 31 42 2 310 341 | WASHER | - | |
| 15 | 07 11 9 932 672 | SHIM - 28X40X0,3-ZN | - |
