R100GS (47E1) | Frame, Fairing, Cases

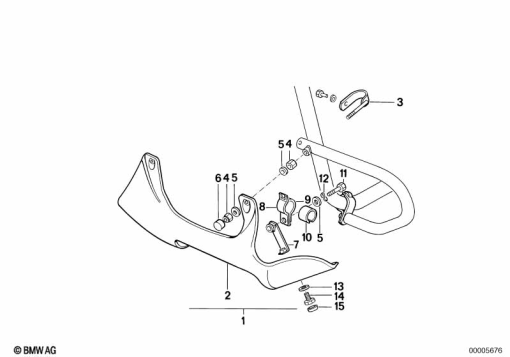

ENGINE COVERING PD
Diagram #46_0179 | 21 parts | 2 available in shop
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 315 306 | SET: INSTALLATION F ENGINE COVERING - ALPINWHITE | 1 | |
| 1 | 46 63 2 315 307 | SET: INSTALLATION F ENGINE COVERING - PRIMED | 1 | |
| 2 | 71 60 2 315 201 | ENGINE COVERING - PRIMED | 1 | |
| 3 | 46 63 2 315 312 | CLAMP | 1 | |
| 4 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 12/96) | 1 | |
| 4 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | 1 | |
| 5 | 07 11 9 931 697 | WASHER - 8,4 | 1 | |
| 5 | 07 11 9 904 826 | Washer | 1 | |
| 6 | 46 51 1 234 785 | PROTECTION CAP - M8 | 1 | |
| 7 | 46 63 2 315 309 | SUPPORT | 1 | |
| 8 | 46 63 1 455 461 | HOLDER | 1 | |
| 9 | 46 63 1 455 462 | HOLDER | 1 | |
| 10 | 46 63 2 315 308 | BASE | 1 | |
| 11 | 07 11 9 904 101 | FILLISTER-HEAD SCREW - M8X16-8.8-ZNS3 | 1 | |
| 11 | 07 11 9 901 023 | screw 8x1.25x16 socket head cap | 1 | |
| 11 | 07 11 9 904 101 | SCREW | 1 | |
| 12 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 13 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | 1 | |
| 13 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 14 | 51 18 1 813 015 | SCREW | 1 | |
| 15 | 51 18 1 813 017 | COVERING CAP - WHITE | 1 |
