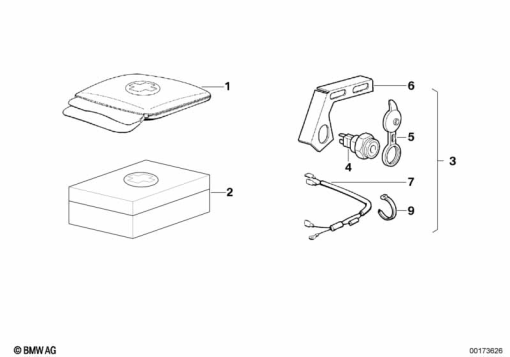

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 72 60 2 449 657 | FIRST AID KIT, LARGE - VERKAUFSDISPLAY | - | |
| 2 | 72 60 7 695 290 | FIRST-AID SET, SMALL | - | |
| 4 | 61 13 1 379 719 | PLUG-IN SOCKET | - | |
| 5 | 61 12 2 303 574 | COVER | - | |
| 6 | 61 31 1 244 590 | HOLDER | - | |
| 7 | 61 12 1 244 589 | WIRING PLUG TERMINAL | - | |
| 8 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
