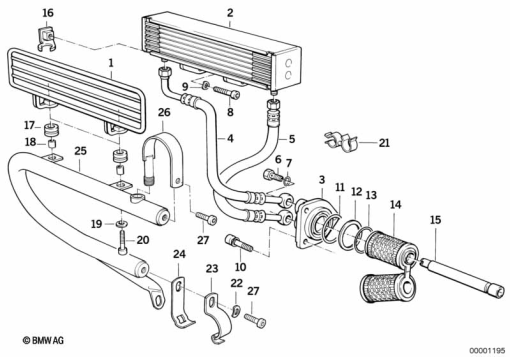

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 42 1 338 482 | PROTECTION GRID F ADDITIONAL FAN | - | |
| 2 | 11 44 1 338 654 | OIL COOLER | - | |
| 3 | 11 42 1 338 511 | OIL FILTER HEAD | - | |
| 4 | 11 42 1 338 510 | OIL COOLING PIPE INLET | - | |
| 5 | 11 42 1 338 509 | OIL COOLING PIPE OUTLET | - | |
| 6 | 11 42 1 338 506 | HOLLOW BOLT | - | |
| 7 | 11 42 1 338 783 | GASKET RING - A12X15.5 | - | |
| 8 | 17 11 1 719 057 | FILLISTER-HEAD SCREW - M6X16 | - | |
| 9 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 9 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 9 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 9 | - | ||
| 10 | 07 11 9 904 527 | HEX BOLT WITH WASHER - M6X20 | - | |
| 11 | 11 42 1 264 160 | O-RING - 44X4 | - | |
| 12 | 11 42 1 336 895 | WASHER - 45.3X51.9X0.3 | - | |
| 14 | 11 42 1 337 575 | OIL FILTER OIL COOLER | - | |
| 15 | 11 42 1 335 387 | OIL COOLER PIPE - L=162MM | - | |
| 16 | 11 42 1 338 477 | BRACKET LEFT | - | |
11 42 1 338 478 | BRACKET RIGHTAlternative for position 16 | - | ||
| 17 | 13 72 1 460 448 | RUBBER GROMMET | - | |
| 18 | 31 42 1 232 241 | BUSH | - | |
| 19 | 11 42 1 338 494 | WASHER | - | |
| 20 | 11 42 1 338 499 | FILLISTER-HEAD SCREW - M8X35 | - | |
| 21 | 11 42 1 338 637 | HOSE CLAMP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
