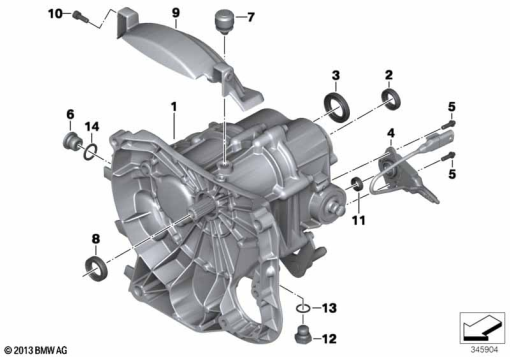

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23005A833A8 | MANUAL TRANSMISSION BLACK | - | |
| 2 | 23 12 7 705 085 | SHAFT SEAL - 17X28X7 | - | |
| 3 | 23 12 7 705 087 | SHAFT SEAL - 25X40X7 | - | |
| 4 | 23 00 8 567 158 | SENSOR GEAR INDICATOR | - | |
| 5 | 07 12 9 907 085 | ASA-BOLT - M5X16 | - | |
| 6 | 23 00 7 721 088 | SCREW PLUG, MAGNETIC - M18X1,5 | - | |
| 7 | 33 74 8 864 458 | BREATHER | - | |
| 8 | 23 12 7 705 086 | SHAFT SEAL - 20X32X8 | - | |
| 9 | 11 14 7 671 363 | COVER, CLUTCH | - | |
| 10 | 07 12 9 904 588 | ISA SCREW - M6X16-8.8-ZNS3 | - | |
| 11 | 23 12 2 330 141 | SHAFT SEAL - 10X18X6 | - | |
| - | Shaft seal 10.18.6. | Shaft seal 10.18.6. | - | |
| 12 | 23005B42036 | SCREW PLUG WITH O-RING | - | |
| 13 | 07 11 9 963 200 | GASKET RING - A14X18-AL | - |
