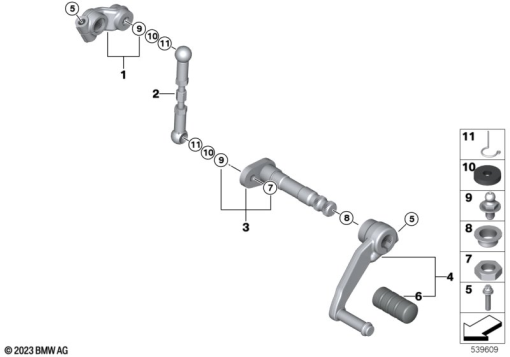

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 41 7 914 323 | TRANSMISSION SHIFT LEVER | - | |
| 2 | 23 41 7 714 804 | SELECTOR ROD - L=85 | - | |
| 3 | 23 41 7 914 317 | SELECTOR SHAFT | - | |
| 4 | 23415A6E5E5 | GEARSHIFT LEVER | - | |
23 41 7 107 809 | FOOT-OPERATED SHIFT LEVER - SHADOWAlternative for position 4 | - | ||
| 5 | 07 11 9 907 490 | STAR-SOCKET SCREW - BM6X25-U1-8.8 | - | |
| 6 | 23 41 7 675 530 | BUSHING | - | |
| 7 | 07 11 9 904 948 | HEX NUT - M8-05-ZNNIV SI | - | |
| 8 | 23 41 7 674 079 | BUSHING | - | |
| 9 | 07 14 7 202 359 | BALL PIN - M8 | - | |
| 10 | 35 41 7 674 080 | PLASTIC WASHER | - | |
| 11 | 07 11 9 904 970 | SAFETY CLIP | - |
