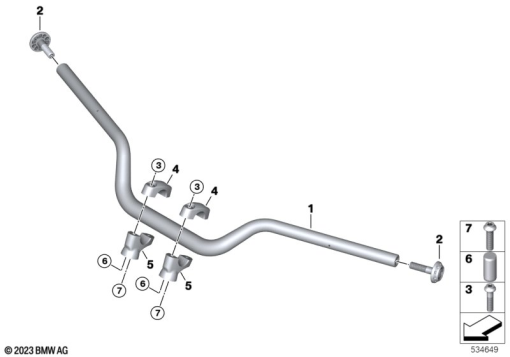

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 7 107 964 | LENKER | - | |
32715A66E14 | LENKER - BLACKAlternative for position 1 | - | ||
| 2 | 32 71 8 558 526 | COVERING CAP | - | |
| 3 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV (from 03/24) | - | |
07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV (to 04/24)Alternative for position 3 | - | ||
| 4 | 32 71 7 107 960 | CLAMPING BLOCK UPPER | - | |
| 5 | 32 71 7 107 962 | CLAMPING BLOCK LOWER | - | |
| 6 | 07 11 9 907 038 | DOWEL PIN - 5M6X10 | - | |
| 7 | 46 53 9 907 391 | SCREW | - |
