R12 nineT 22 (KR1) | Steering

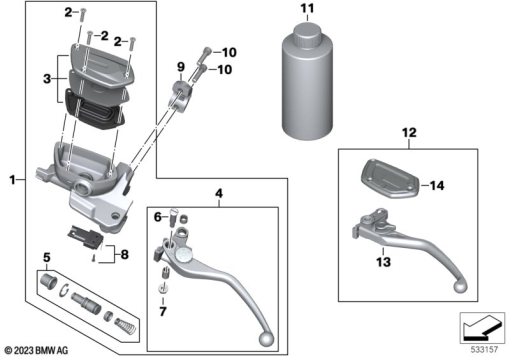

CLUTCH CONTROL ASSEMBLY
Diagram #32_2937 | 15 parts | 1 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 7 106 205 | CLUTCH LEVER FITTING | 1 | |
| 2 | 32 72 8 559 863 | COUNTERSUNK SCREW - M4X20 | 1 | |
| 3 | 32725A7A910 | SET: KIT, COVER, EXPANSION TANK, CLUTCH | 1 | |
| 4 | 32 72 8 568 551 | SET: CLUTCH LEVER | 1 | |
| 5 | 32 72 1 540 351 | SET: PISTON KIT | 1 | |
| 6 | 32 72 8 568 548 | SCREW | 1 | |
| 7 | 32 72 8 554 974 | NUT - M6 | 1 | |
| 8 | 32 72 8 537 609 | SET: SET OF DUAL MICROSWITCHES | 1 | |
| 9 | 32 72 8 563 846 | PIPE CLAMP | 1 | |
| 9 | 32 72 8 559 149 | PIPE CLAMP | 1 | |
| 10 | 07 12 9 907 264 | SCREW - M6X25 | 1 | |
| 11 | 21 52 2 455 540 | TRANSMISSION OIL HYSPIN V10 - 250 ML | 1 | |
| 12 | 32725A82DA6 | SET: CLUTCH LEVERS - SHADOW | 1 | |
| 13 | 32725A90D10 | KUPPLUNGSHEBEL - SHADOW | 1 | |
| 14 | 32725A82DB2 | LID - SHADOW | 1 |
