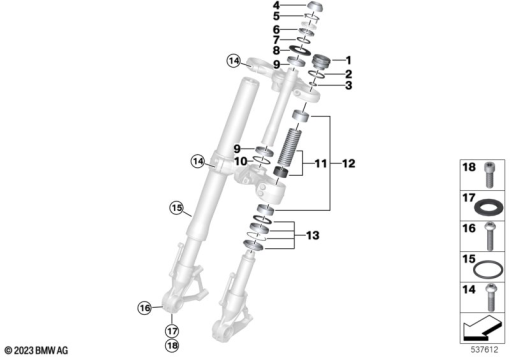

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31425A6D352 | 350.97 | - | |
| 2 | 07 11 9 909 451 | O-RING - 44,04X3,53 | - | |
| 3 | 07 11 9 909 558 | O-RING - 2,9X1,78 | - | |
| 4 | 31 42 9 898 304 | CENTERING RING | - | |
| 5 | 31 42 8 549 411 | SECURING PLATE | - | |
| 6 | 31 42 8 549 401 | GROOVE NUT | - | |
| 7 | 31 42 8 548 983 | RUBBER WASHER | - | |
| 8 | 31 42 8 554 057 | WASHER-GASKET | - | |
| 9 | 31 42 8 548 780 | BEARING | - | |
| 10 | 31 42 8 548 984 | WASHER-GASKET | - | |
| 11 | 31425A6D182 | SET: SET SPRINGS | - | |
| 12 | 31 42 9 898 403 | SET: SET OF PLAIN BEARINGS | - | |
| 13 | 31425A95630 | SET: SET OF GASKETS | - | |
| 14 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | - | |
| 15 | 31 42 8 406 079 | O-RING - 34X4 | - | |
| 16 | 07 12 9 908 033 | FILLISTER-HEAD SCREW - M6X30 - 10.9 | - | |
| 17 | 31 42 9 444 964 | GASKET RING | - | |
| 18 | 07 12 9 906 017 | ISA SCREW - M8X25 8.8 MK | - |
