R12 nineT 22 (KR1) | Service Items

BRAKE SERVICE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #02_0114 | 33 parts

100%

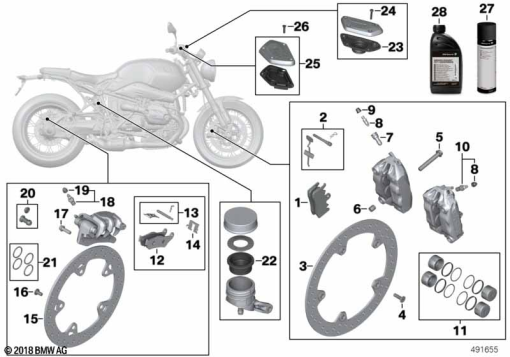

R12 nineT 22 (KR1) BRAKE SERVICE exploded view parts diagram

Parts List (33)

#	Part Number	Description	Qty
1	34 11 8 548 028	SET: OF BRAKE PADS FRONT - BREMBO	1
1	83 12 2 296 187	Brake Pad Paste - 5 ml	1
2	34 11 8 535 158	SET: OF MOUNTING PARTS, BRAKE PADS - BREMBO	1
2	34 11 8 535 158	SET: OF MOUNTING PARTS, BRAKE PADS - BREMBO	1
4	34 11 7 700 989	COUNTERSUNK SCREW - M8X27-10.9 MK	1
5	34 11 7 719 823	HEXAGON-HEAD BOLT WITH SHANK - M10X65-8.8	1
6	07 14 1 642 512	DOWEL - 12,5X10,5X13,5	1
7	34 32 8 549 328	VENTILATION BOLT	1
8	34 11 8 520 872	VENT SCREW	1
9	34 21 2 314 001	34 21 2 314 001	2
10	34 32 8 559 191	SCREW PLUG WITH VENTILATION	1
11	34 11 8 549 507	SET: SET OF BRAKE PISTONS WITH SEALS	1
12	34 21 2 335 465	SET: SET, BRAKE PADS, ORGANIC	1
12	83 12 2 296 187	Brake Pad Paste - 5 ml	1
13	34 21 7 671 876	MOUNTING PARTS SET	1
14	34 21 7 663 749	SUPPORT PLATE	1
15	34 21 7 664 102	BRAKE DISK	1
5	33 17 7 709 205	TORX SCREW - M8X15,5-MK-ZNS3	1
16	33 17 7 709 205	TORX SCREW - M8X15,5-MK-ZNS3	1
17	46 71 7 726 491	TRAPEZOIDAL SCREW - M8X25-10.9-SI	1
18	34 32 8 559 191	SCREW PLUG WITH VENTILATION	1
19	34 21 2 314 001	34 21 2 314 001	1
20	34 21 2 330 312	REPAIR KIT, RUBBER COVER	1
21	34 21 7 674 607	SET OF BRAKE CALIPER PISTON SEALS - D=28MM	1
22	34315A74AE6	RUBBER COVER	1
23	32725A7A910	SET: KIT, COVER, EXPANSION TANK, CLUTCH	1
24	32 72 8 559 863	COUNTERSUNK SCREW - M4X20	1
25	32 72 8 104 419	SET: SET OF CAPS, FLUID RESERVOIR, BRAKES	1
26	32 72 8 559 863	COUNTERSUNK SCREW - M4X20	1
27	83195A23100	BRAKE CLEANER, ACETONE-FREE - 500ML	1
28	83105A87362	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L	1
28	83135A824F1	BRAKE FLUID DOT4, LOW-VISCOSITY EU - 60L	1
28	83105A87361	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML	1
