R12 nineT 22 (KR1) | Pedals

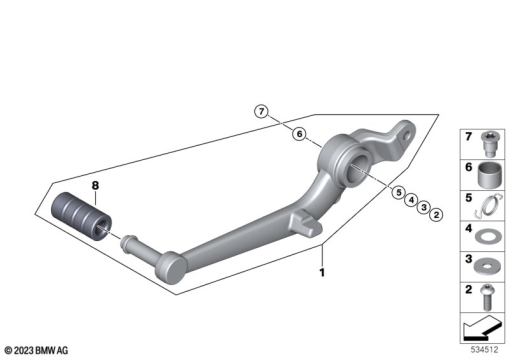

BRAKE PEDAL
Diagram #35_0844 | 9 parts | 1 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 7 107 686 | FUßBREMSHEBEL | 1 | |
| 1 | 35 21 7 107 690 | BRAKE PEDAL - SHADOW | 1 | |
| 2 | 07 12 9 908 467 | FILLISTER-HEAD SCREW - M8X25-8.8-MK | 1 | |
| 3 | 07 11 9 905 732 | WASHER | 1 | |
| 4 | 07 14 7 701 307 | WASHER - 13,5X24X0,5 | 1 | |
| 5 | 35 21 7 666 719 | RETAINER SPRING | 1 | |
| 6 | 35 21 7 721 100 | BUSHING | 1 | |
| 7 | 23 41 8 533 708 | COLLAR BUSH | 1 | |
| 8 | 23 41 7 675 530 | BUSHING | 1 |
