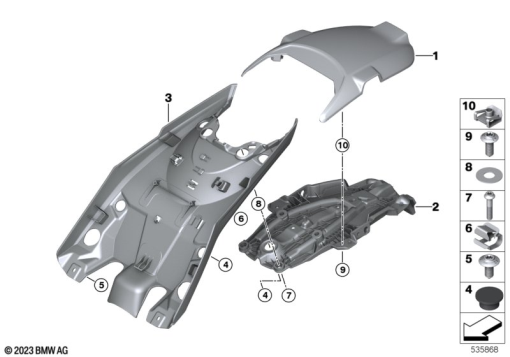

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46625B36940 | REAR WHEEL COVER - ROHTEIL / BLANK | 1 | |
| 2 | 46625A6DE97 | REAR CARRIER PART | 1 | |
| 3 | 46 62 1 728 847 | REAR WHEEL COVER, FRONT | 1 | |
| 4 | 07 14 9 626 974 | SEAL PLUG - D=21,7MM | 1 | |
| 5 | 46 63 8 568 779 | BODY SCREW WITHOUT SHOULDER - M5X12 MK | 1 | |
| 6 | 61 13 7 670 182 | FIXING CLAMP | 1 | |
| 7 | 07 12 9 908 637 | FILLISTER-HEAD SCREW - M6X30 MK | 1 | |
| 8 | 07 14 7 135 526 | WASHER - 6,4X15X0,5-ZNS3 | 1 | |
| 9 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | 1 | |
| 10 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 |
