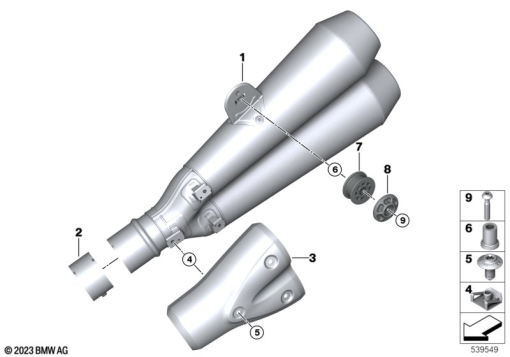

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 7 106 142 | MUFFLER - POLIERT | - | |
| 2 | 18 51 8 405 432 | CIRCLIP END MUFFLER - D=62.6 | - | |
| 3 | 18 51 7 106 146 | HEAT SHIELD, POLISHED | - | |
| 4 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 5 | 18515A9DC20 | BODY SCREW WITHOUT SHOULDER - M5X10 MK | - | |
| 6 | 18 51 7 708 081 | SPACER SLEEVE | - | |
| 7 | 18 51 7 728 002 | RUBBER INSULATION ELEMENT | - | |
| 8 | 18 51 7 708 082 | FORMED DISC | - | |
| 9 | 07 12 9 907 379 | FILLISTER-HEAD SCREW - M8X40-8.8-ZNNIV | - |
