R12 nineT 22 (KR1) | Engine

TIMING GEAR - INTAKE VALVE/EXHAUST VALVE

Diagram #11_4294 | 35 parts

100%

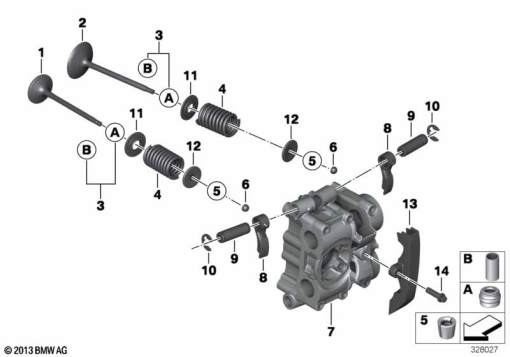

R12 nineT 22 (KR1) TIMING GEAR - INTAKE VALVE/EXHAUST VALVE exploded view parts diagram

Parts List (35)

#Part NumberDescriptionQty
1
11 34 7 714 769
EXHAUST VALVE1
2
11 34 7 714 768
INTAKE VALVE1
3
11 31 7 710 485
SET: REPAIR KIT VALVE SEAL RING1
4
11 34 7 671 091
VALVE SPRING1
5
11 34 1 340 846
VALVE COLLET - D=51
6
11 34 7 721 166
SEMI-SPHERE - 4,601
6
11 34 7 721 167
SEMI-SPHERE - 4,651
6
11 34 7 721 168
SEMI-SPHERE - 4,701
6
11 34 7 721 170
SEMI-SPHERE - 4,751
6
11 34 7 721 172
SEMI-SPHERE - 4,801
6
11 34 7 721 174
SEMI-SPHERE - 4,851
6
11 34 7 721 176
SEMI-SPHERE - 4,901
6
11 34 7 721 178
SEMI-SPHERE - 4,951
6
11 34 7 721 180
SEMI-SPHERE - 5,001
6
11 34 7 721 182
SEMI-SPHERE - 5,051
6
11 34 7 721 184
SEMI-SPHERE - 5,101
6
11 34 7 721 186
SEMI-SPHERE - 5,151
6
11 34 7 721 187
SEMI-SPHERE - 5,201
6
11 34 7 721 188
SEMI-SPHERE - 5,251
6
11 34 7 721 189
SEMI-SPHERE - 5,301
6
11 34 7 721 190
SEMI-SPHERE - 5,351
6
11 34 7 721 191
SEMI-SPHERE - 5,401
6
11 34 7 721 192
SEMI-SPHERE - 5,451
6
11 34 7 721 193
SEMI-SPHERE - 5,501
6
11 34 7 721 194
SEMI-SPHERE - 5,551
6
11 34 7 721 195
SEMI-SPHERE - 5,601
6
11 34 7 721 196
SEMI-SPHERE - 5,651
6
11 34 7 721 197
SEMI-SPHERE - 5,701
7
11 33 7 708 465
LEFT CAMSHAFT SUPPORTING BRACKET1
7
11 33 7 708 466
RIGHT CAMSHAFT SUPPORTING BRACKET1
8
11 33 1 540 854
ROCKER ARM1
9
11 12 7 711 064
ROCKER ARM SHAFT1
10
07 11 9 932 872
SECURING CLIP - 9-PHR1
11
11 34 7 685 434
LOWER SPRING PLATE1
12
11 34 7 722 603
UPPER SPRING PLATE1
