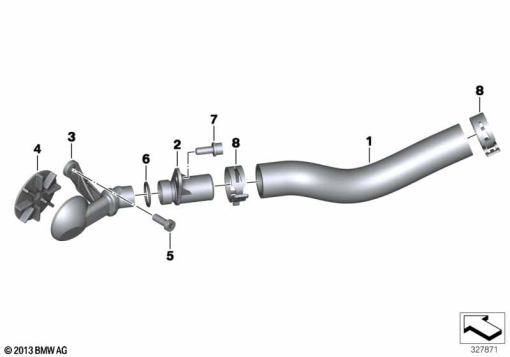

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 15 7 106 151 | HOSE, CRANKCASE VENTILATION | - | |
| 2 | 11 15 7 713 167 | FITTING, ENGINE AIR DISCHARGE | - | |
| 3 | 11 15 7 922 001 | BREATHER TUBE | - | |
| 4 | 11 15 1 542 424 | BREATHER | - | |
| 5 | 07 12 9 905 261 | ISA SCREW - M6X16-8.8-MK | - | |
| 6 | 12 72 7 694 010 | O-RING - 17X2 | - | |
| 7 | 07 12 9 904 819 | TORX-BOLT WITH WASHER - M6X16-8.8-ZNNIV | - | |
| 8 | 11 15 7 679 174 | HOSE CLAMP - D=28MM | - |
