R12 nineT 22 (KR1) | Engine

CAMSHAFT CAMSHAFT

Diagram #11_6541 | 5 parts

100%

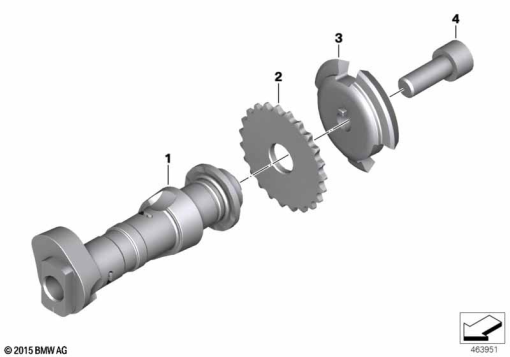

R12 nineT 22 (KR1) CAMSHAFT CAMSHAFT exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
11 31 9 446 011
CAMSHAFT I1
1
11 31 9 446 012
CAMSHAFT II1
2
11 31 7 726 778
SPROCKET, CAMSHAFT1
3
11 31 8 562 447
CAMSHAFT SENSOR RELUCTOR RING1
4
07 11 9 907 514
HEX BOLT - 10X1,25X25-10.91
