R12 nineT 22 (KR1) | Electrical System

CABLE STRAP WITH BRACKET, EDGE CLIP

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #61_6470 | 6 parts

100%

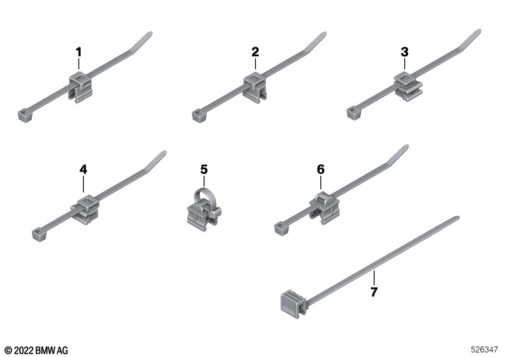

R12 nineT 22 (KR1) CABLE STRAP WITH BRACKET, EDGE CLIP exploded view parts diagram

Parts List (6)

#	Part Number	Description	Qty
1	61 13 6 915 982	CABLE STRAP WITH BRACKET - L=200MM	-
2	61 13 6 916 946	CABLE STRAP WITH BRACKET - L=200MM	-
	61 13 7 560 191	CABLE STRAP WITH BRACKET - L=200MMAlternative for position 2	-
3	61 13 6 918 644	CABLE STRAP WITH BRACKET - L=200MM	-
	61 13 9 200 225	CABLE STRAP WITH BRACKET - L=200MMAlternative for position 3	-
6	61 13 7 811 031	CABLE RETAINER	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
