R12 nineT 22 (KR1) | Cooling
OIL COOLER/OIL COOLING PIPE

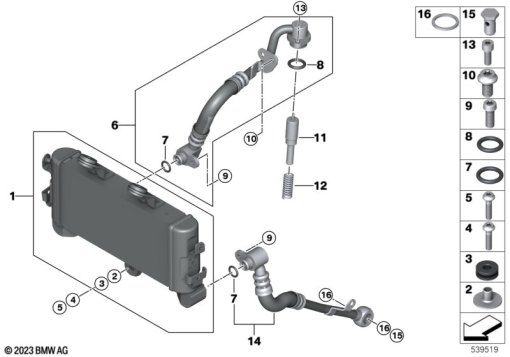

Diagram #17_2170 | 16 parts
100%
Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 21 7 106 120 | OIL COOLER | 1 | |
| 2 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | 1 | |
| 3 | 46 63 1 451 277 | RUBBER GROMMET | 1 | |
| 4 | 07 14 9 151 606 | WASHER - 6,4-25-1,5MM | 1 | |
| 5 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 | |
| 6 | 17 22 7 108 799 | OIL COOLER LINE FEED | 1 | |
| 7 | 07 11 9 909 664 | O-RING - 12,37X2,26 | 1 | |
| 8 | 17 22 1 342 487 | O-RING - 19X4 | 1 | |
| 9 | 07 11 9 909 631 | SCREW - M6X16-10.9-MKL | 1 | |
| 10 | 07 12 9 907 404 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV | 1 | |
| 11 | 11 41 1 342 761 | THERMOSTAT - 95CEL | 1 | |
| 12 | 11 44 1 342 571 | COMPRESSION SPRING | 1 | |
| 13 | 07 12 9 904 588 | ISA SCREW - M6X16-8.8-ZNS3 | 1 | |
| 14 | 17 22 7 108 800 | OIL COOLER LINE RETURN | 1 | |
| 15 | 32 41 6 852 470 | HOLLOW BOLT - M16X28 | 1 | |
| 16 | 07 11 9 963 253 | GASKET RING - A16X20-CU | 1 |
