Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 8 556 205 | BRAKE CALIPER BREMBO LEFT - BLACK | - | |
| 2 | 34 11 8 556 206 | BRAKE CALIPER BREMBO RIGHT - BLACK | - | |
| 3 | 34 32 8 549 328 | VENTILATION BOLT | - | |
| 4 | 34 11 8 520 872 | VENT SCREW | - | |
| 5 | 34 21 2 314 001 | 34 21 2 314 001 | 2 | |
| 6 | 34 11 8 535 158 | SET: OF MOUNTING PARTS, BRAKE PADS - BREMBO | - | |
| 8 | 34 11 8 548 028 | SET: OF BRAKE PADS FRONT - BREMBO | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 8 | - | ||
| - | 34 11 8 535 158 | SET: OF MOUNTING PARTS, BRAKE PADS - BREMBO | - | |
| 9 | 34 11 7 700 989 | COUNTERSUNK SCREW - M8X27-10.9 MK | - | |
| 10 | 07 14 1 642 512 | DOWEL - 12,5X10,5X13,5 | - | |
| 11 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 12 | 34 11 7 719 823 | HEXAGON-HEAD BOLT WITH SHANK - M10X65-8.8 | - | |
| 13 | 34 11 8 549 507 | SET: SET OF BRAKE PISTONS WITH SEALS | - |

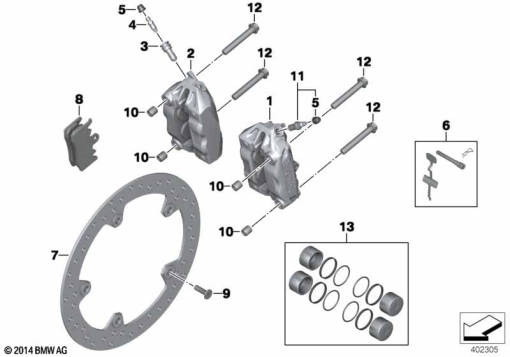

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
