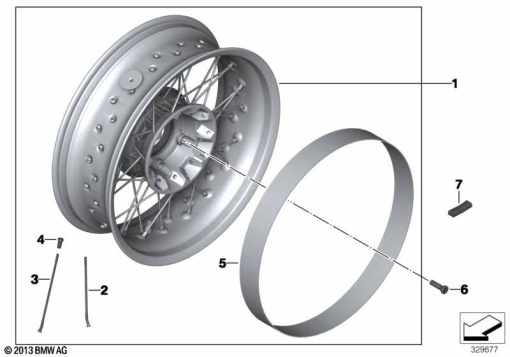

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 569 539 | SPOKE WHEEL, BLACK, REAR - 5,5X17 | - | |
| 2 | 36 31 8 569 573 | SPOKE, INSIDE - L=128,7MM | - | |
| 3 | 36 31 8 569 572 | SPOKE, OUTSIDE - L=137,3MM | - | |
| 4 | 36 31 8 562 545 | NIPPLE - M4,5 | - | |
36 31 9 444 615 | NIPPLE - M4,5Alternative for position 4 | - | ||
| 5 | 36 31 8 562 554 | TIRE FLAP - 5,5X17 | - | |
| 6 | 36 31 7 668 389 | WHEEL BOLT - M10X1,25XX53 | - | |
| 7 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 7 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 7 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 7 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 7 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 7 | - |
