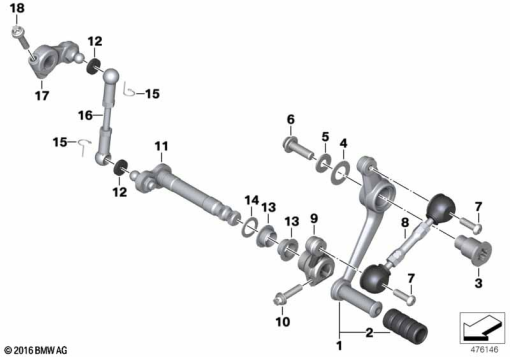

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 41 8 559 819 | FOOT-OPERATED SHIFT LEVER | - | |
| 2 | 23 41 7 680 761 | PAD FOR FOOT-OPERATED SHIFT LEVER | - | |
| 3 | 23 41 8 533 708 | COLLAR BUSH | - | |
| 4 | 07 14 7 701 307 | WASHER - 13,5X24X0,5 | - | |
| 5 | 07 11 9 905 732 | WASHER | - | |
| 6 | 07 12 9 907 382 | FILLISTER-HEAD SCREW - M8X25-8.8-ZNNIV | - | |
| 7 | 23 41 7 728 108 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X20 | - | |
| 8 | 23 41 8 564 169 | SELECTOR ROD | - | |
| 9 | 23 41 8 559 833 | TRANSMISSION SHIFT LEVER | - | |
| 10 | 07 11 9 907 490 | STAR-SOCKET SCREW - BM6X25-U1-8.8 | - | |
| 11 | 23 41 7 693 520 | SELECTOR SHAFT | - | |
| 12 | 35 41 7 674 080 | PLASTIC WASHER | - | |
| 13 | 23 41 7 674 079 | BUSHING | - | |
| 14 | 23 41 7 673 906 | WASHER | - | |
| 15 | 07 11 9 904 970 | SAFETY CLIP | - | |
| 16 | 23 41 7 714 804 | SELECTOR ROD - L=85 | - | |
| 17 | 23 41 7 671 067 | SHIFT LEVER | - | |
| 18 | 07 12 9 907 050 | ASA-BOLT - M6X25-8.8-ZNNIV | - |
