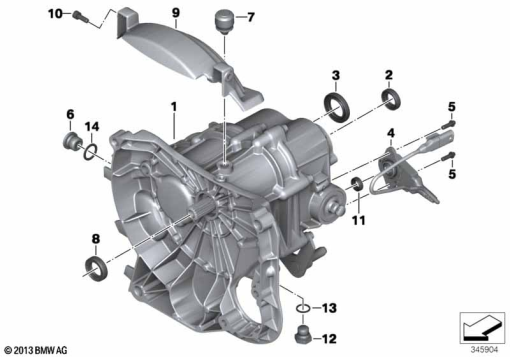

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 7 923 190 | 6-GEAR TRANSMISSION BLACK | - | |
23 00 7 718 016 | POTENTIOMETER WITH WIREAlternative for position 1 | - | ||
| 2 | 23 12 7 705 085 | SHAFT SEAL - 17X28X7 | - | |
| 3 | 23 12 7 705 087 | SHAFT SEAL - 25X40X7 | - | |
| 4 | 23 00 7 718 016 | POTENTIOMETER WITH WIRE | - | |
| 7 | 33 74 8 864 458 | Breather | - | |
| - | 07 12 9 907 085 | ASA-BOLT - M5X16 | - | |
| - | 23 00 7 721 088 | SCREW PLUG, MAGNETIC - M18X1,5 | - | |
| 7 | 23 00 7 693 739 | BREATHER (to 01/23) | - | |
33 74 8 864 458 | BREATHERAlternative for position 7 | - | ||
| 8 | 23 12 7 705 086 | SHAFT SEAL - 20X32X8 | - | |
| 9 | 11 14 7 671 363 | COVER, CLUTCH | - | |
| 10 | 07 12 9 904 073 | ISA SCREW - M6X20-8.8-MK | - | |
| 11 | 23 12 2 330 141 | SHAFT SEAL - 10X18X6 | - | |
| - | Shaft seal 10.18.6. | Shaft seal 10.18.6. | - | |
| 12 | 11 13 1 744 329 | SCREW PLUG, MAGNETIC - M14X1,5 | - | |
| 13 | 07 11 9 963 200 | GASKET RING - A14X18-AL | - | |
| 14 | 07 11 9 963 300 | GASKET RING - A18X22-AL | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
