R nineT Racer (K32) | Steering

CLUTCH CONTROL ASSEMBLY

Diagram #32_2499 | 28 parts

100%

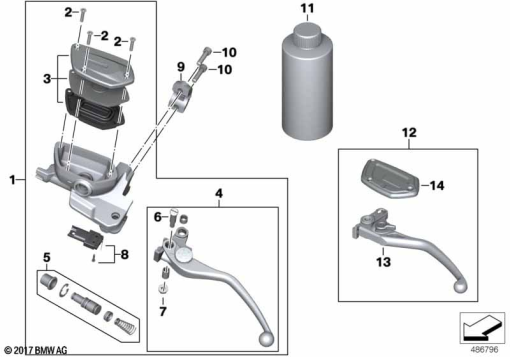

R nineT Racer (K32) CLUTCH CONTROL ASSEMBLY exploded view parts diagram

Parts List (28)

#Part NumberDescriptionQty
1
32 72 1 598 910
CLUTCH CONTROL ASSEMBLY-
32 72 1 598 910
CLUTCH CONTROL ASSEMBLYAlternative for position 1-
32 72 8 404 087
SET: CLUTCH LEVERS - CLUB SPORTAlternative for position 1-
32 72 1 598 910
CLUTCH CONTROL ASSEMBLYAlternative for position 1-
32 72 8 404 086
SET: CLUTCH LEVERS - STORMAlternative for position 1-
32 72 1 598 910
CLUTCH CONTROL ASSEMBLYAlternative for position 1-
32 72 8 404 085
SET: CLUTCH LEVERS - CLASSICAlternative for position 1-
2
32 72 8 559 863
COUNTERSUNK SCREW - M4X20-
3
32 72 8 568 552
SET: SET OF CAPS, FLUID RESERVOIR, CLUTCH-
4
32 72 8 568 551
SET: CLUTCH LEVER-
5
32 72 1 540 351
SET: PISTON KIT-
6
32 72 8 568 548
SCREW-
7
32 72 8 554 974
NUT - M6-
8
32 72 8 568 553
SET: SET OF MICROSWITCHES-
9
32 72 8 559 149
PIPE CLAMP-
32 72 8 559 149
PIPE CLAMPAlternative for position 9-
32 72 8 559 149
PIPE CLAMPAlternative for position 9-
10
07 12 9 907 264
SCREW - M6X25-
11
21 52 2 455 540
TRANSMISSION OIL HYSPIN V10 - 250 ML-
12
32 72 8 404 087
SET: CLUTCH LEVERS - CLUB SPORT-
32 72 8 404 086
SET: CLUTCH LEVERS - STORMAlternative for position 12-
32 72 8 404 085
SET: CLUTCH LEVERS - CLASSICAlternative for position 12-
13
32 72 8 404 093
CLUTCH LEVER - CLUB SPORT-
32 72 8 404 092
CLUTCH LEVER - STORMAlternative for position 13-
32 72 8 404 091
CLUTCH LEVER - CLASSICAlternative for position 13-
14
32 72 8 404 101
COVER - CLUB SPORT-
32 72 8 404 099
COVER - STORMAlternative for position 14-
32 72 8 404 097
COVER - CLASSICAlternative for position 14-
