R nineT Racer (K32) | Steering

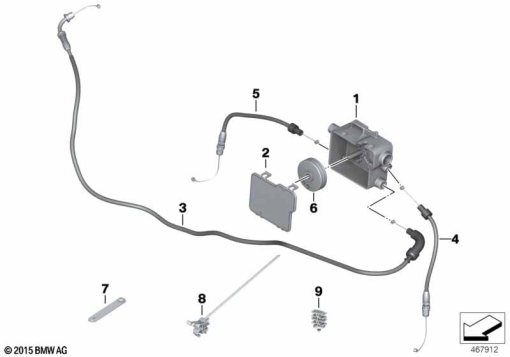

BOWDEN CABLE/CABLE DISTRIBUTOR
Diagram #32_2483 | 9 parts | 4 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 73 7 670 564 | HOUSING FOR BOWDEN CABLE DISTRIBUTOR | 1 | |
| 2 | 32 73 7 670 565 | COVER | 1 | |
| 3 | 32 73 7 714 761 | THROTTLE CABLE, BREAK CONTACT | 1 | |
| 4 | 32 73 7 670 567 | BOWDEN CABLE, THROTTLE VALVE, LEFT | 1 | |
| 5 | 32 73 7 670 568 | BOWDEN CABLE, THROTTLE VALVE, RIGHT | 1 | |
| 6 | 32 73 7 669 398 | DOUBLE CABLE PULLEY | 1 | |
| 7 | 61 13 7 723 698 | RUBBER TENSION STRAP - L=56MM | 1 | |
| 8 | 34 32 7 661 760 | BRAKE PIPE BRACKET | 1 | |
| 9 | 11 65 7 807 216 | CLIP | 1 |
