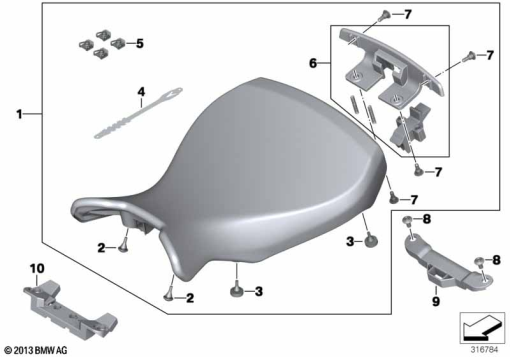

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 8 559 399 | DRIVERS SEAT, BLACK | 1 | |
| 2 | 52 51 2 328 424 | DISTANCE RUBBER | 1 | |
| 3 | 52 53 7 718 633 | RUBBER BUFFER - 6MM | 1 | |
| 4 | 71 11 2 316 481 | HOLDING STRAP | 1 | |
| 5 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 6 | 52 53 8 549 476 | SET: KIT, BENCH SEAT LOCK MECHANISMS | 1 | |
| 7 | 46 63 8 521 654 | BODY SCREW WITH SHOULDER - M5X17,5-A2-70 | 1 | |
| 8 | 46 63 8 521 656 | BODY SCREW WITH SHOULDER - M6X14,5-A2-70 | 1 | |
| 9 | 52 53 8 569 810 | BRACE FOR SADDLE | 1 | |
| 10 | 46 63 8 561 879 | SUPPORTING BRACKET | 1 |
