R nineT Racer (K32) | Rear Axle & Suspension

REAR WHEEL SWINGING ARM

Diagram #33_1226 | 21 parts

100%

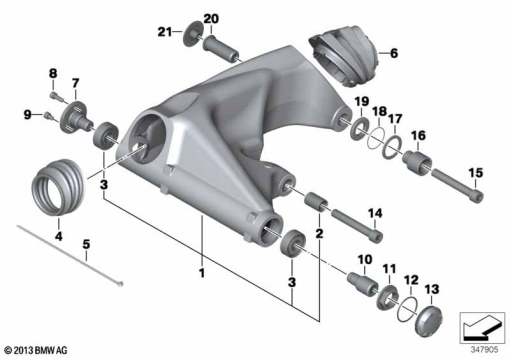

R nineT Racer (K32) REAR WHEEL SWINGING ARM exploded view parts diagram

Parts List (21)

#Part NumberDescriptionQty
1
33 17 8 523 879
REAR WHEEL SWINGING ARM, BLACK-
33355A65AB4
PIVOT PINAlternative for position 1-
07 12 9 907 075
FILLISTER-HEAD SCREW - M12X80-10.9-MKAlternative for position 1-
2
33 17 2 338 103
FIT BUSH-
3
33 17 2 311 729
TAPERED ROLLER BEARING - 17X40X13,25-
4
33 17 7 685 599
RUBBER BOOT-
5
33 17 7 687 623
CABLE TIE-
6
33 17 7 685 052
RUBBER BOOT-
7
33 17 2 332 569
PIVOT PIN, RIGHT-
8
07 12 9 909 574
SCREW - M6X15-8.8.MKL-
9
07 12 9 907 087
ISA SCREW - M6X8-
10
33 17 2 335 110
PIVOT PIN-
11
33 17 2 335 111
COLLAR NUT - M24X1,25-ZNNIV-
13
33 17 7 674 694
COVER-
15
07 12 9 907 075
FILLISTER-HEAD SCREW - M12X80-10.9-MK-
16
33 17 7 665 148
PIVOT PIN-
17
33 11 7 684 996
GASKET RING - 38X30X2,5-
18
07 11 9 904 693
O-RING - 34X1-
19
33 17 7 672 817
SPACER RING-
20
33 17 8 375 112
PIVOT PIN-
33355A65AB4
PIVOT PINAlternative for position 20-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
