R nineT Racer (K32) | Pedals

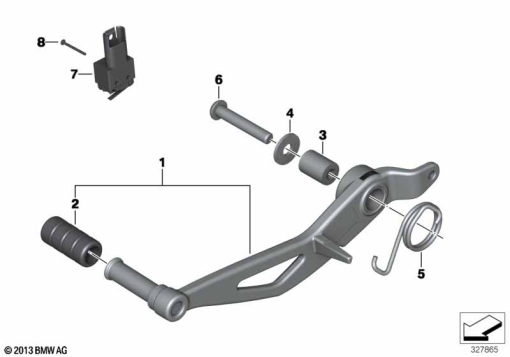

BRAKE PEDAL
Diagram #35_0370 | 8 parts
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 558 495 | BRAKE PEDAL | - | |
| 2 | 23 41 7 680 761 | PAD FOR FOOT-OPERATED SHIFT LEVER | - | |
| 3 | 35 21 2 345 837 | BUSHING | - | |
| 4 | 07 11 9 905 732 | WASHER | - | |
| 5 | 35 21 7 670 901 | RETAINER SPRING | - | |
| 6 | 07 12 9 907 830 | FILLISTER-HEAD SCREW - M8X45-8.8-MK-ZN | - | |
| 7 | 61 32 7 683 117 | BRAKE LIGHT SWITCH FOOT BRAKE | - | |
| 8 | 07 11 9 906 874 | GROOVED DRIVE STUD | - |
