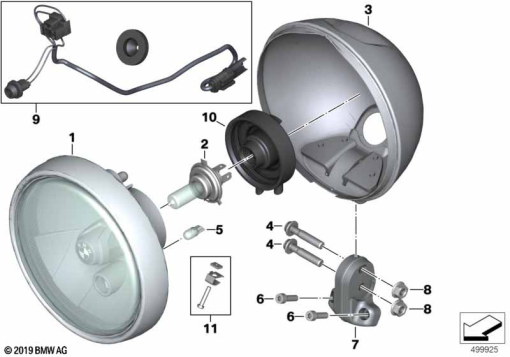

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 8 567 929 | REFLECTOR | - | |
| 2 | 63 21 7 162 953 | LONGLIFE BULB - H4 | - | |
| 3 | 63 12 8 557 182 | HEADLIGHT HOUSING BLACK | - | |
| 4 | 07 12 9 907 379 | FILLISTER-HEAD SCREW - M8X40-8.8-ZNNIV | - | |
| 5 | 63 21 7 160 797 | LONGLIFE BULB - 5W | - | |
| 6 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | - | |
| 7 | 31 42 8 538 055 | HEADLIGHT BRACKET | - | |
| 8 | 07 11 9 905 977 | HEX NUT WIHT FLANGE - M8-8-ZNNIV SI | - | |
| 9 | 63 12 8 568 038 | WIRING HEAD LIGHT - L=380MM | - | |
| 10 | 63 12 8 544 928 | 0.09 | - | |
| 11 | 63 12 9 443 180 | SET: MOUNTING PARTS SET | - |
