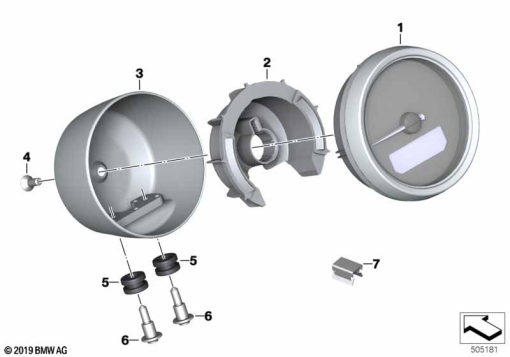

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 1 691 262 | REVOLUTION COUNTER | - | |
62 11 1 691 262 | REVOLUTION COUNTERAlternative for position 1 | - | ||
| 2 | 62 11 8 558 858 | BRACKET F INSTRUMENT CLUSTER | - | |
| 3 | 62 11 8 567 597 | TRIM PANEL INSTRUMENTS COMBINATION | - | |
| 4 | 64 22 6 916 475 | COUNTERSUNK HEAD SCREW - M5X12-ZNS3 | - | |
| 5 | 62 11 8 356 970 | GROMMET | - | |
| 6 | 46 63 8 521 655 | BODY SCREW WITH SHOULDER - M5X20 | - | |
| 7 | 46 63 2 315 390 | CLAMP | - |
