R nineT Racer (K32) | Fuel Supply

TANK LID

Diagram #16_0907 | 4 parts

100%

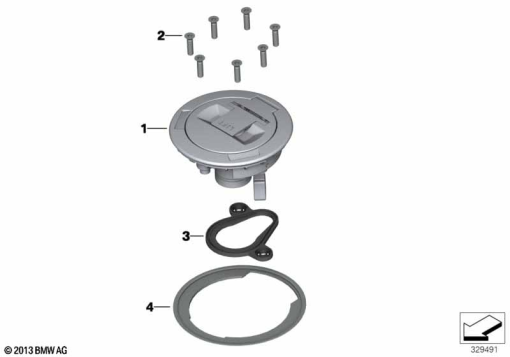

R nineT Racer (K32) TANK LID exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
16 11 8 544 124
TANK LID1
2
07 14 7 237 918
TORX-COUNTERSUNK HEAD SCREW - M5X20-8.8-ZNNID1
3
16 11 7 691 509
FILLER TUBE GASKET1
4
16 11 7 681 038
COVER RING FOR FUEL FILLER CAP1
