R nineT Racer (K32) | Front Suspension
TELESCOPE-FORK

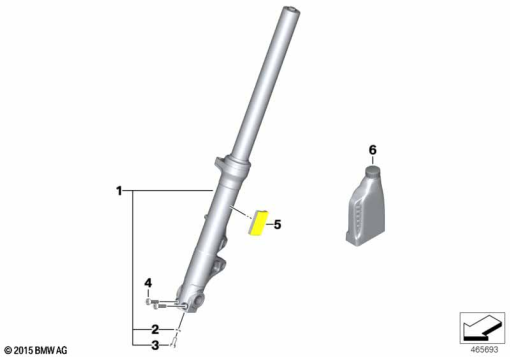

Diagram #31_1297 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 558 475 | FORK LEG LEFT | 1 | |
| 1 | 31 42 8 558 476 | FORK LEG RIGHT | 1 | |
| 1 | 63 14 8 565 207 | REAR REFLECTOR YELLOW | 1 | |
| 2 | 31 42 2 312 710 | GASKET | 1 | |
| 3 | 31 42 2 312 711 | FILLISTER-HEAD SCREW - M8X18-8.8-ZNS3 | 1 | |
| 4 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | 1 | |
| 5 | 63 14 8 565 207 | REAR REFLECTOR YELLOW | 1 | |
| 6 | 83 19 2 470 714 | TELESCOPIC FORK OIL TYPE 4 - 1000ML | 1 |
