R nineT Racer (K32) | Frame, Fairing, Cases
REAR WHEEL COVER, LICENSE PLATE BRACKET

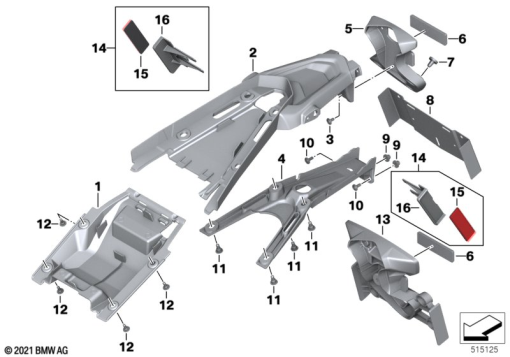

Diagram #46_1556 | 11 parts
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 8 558 069 | REAR WHEEL COVER | - | |
| 2 | 46 62 8 531 172 | WHEEL COVER, REAR SECTION, REAR | - | |
| 3 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | - | |
| 4 | 46 62 8 531 174 | HOLDER FOR LICENSE PLATE BRACKET | - | |
| 6 | 63 14 7 671 349 | REAR REFLECTOR RED | - | |
| 7 | 51 18 1 852 299 | PLUG-IN NUT | - | |
| 9 | 07 12 9 904 997 | HEX NUT - M5 | - | |
| 10 | 46 63 8 534 939 | BODY SCREW WITHOUT SHOULDER - M5X25 | - | |
| 11 | 46 63 8 521 654 | BODY SCREW WITH SHOULDER - M5X17,5-A2-70 | - | |
| 12 | 46 63 8 527 780 | BODY SCREW WITHOUT SHOULDER - M5X20-A2-70 | - | |
| 13 | 46 62 8 531 177 | LICENSE PLATE HOLDER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
