Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 396 602 | FOOTREST ASSEMBLY, RIGHT - CLASSIC | - | |
46 71 8 396 604 | FOOTREST ASSEMBLY, RIGHT - STORMAlternative for position 1 | - | ||
46 71 8 396 606 | FOOTREST ASSEMBLY, RIGHT - CLUB-SPORTAlternative for position 1 | - | ||
| 2 | 07 12 9 907 382 | FILLISTER-HEAD SCREW - M8X25-8.8-ZNNIV | - | |
| 3 | 46 71 8 396 610 | FOOTPEG PLATE RIGHT - CLASSIC | - | |
46 71 8 396 612 | FOOTPEG PLATE RIGHT - STORMAlternative for position 3 | - | ||
46 71 8 396 614 | FOOTPEG PLATE RIGHT - CLUB-SPORTAlternative for position 3 | - | ||
| 4 | 61 32 7 683 117 | BRAKE LIGHT SWITCH FOOT BRAKE | - | |
| 6 | 46 71 8 396 525 | BRAKE LEVER, ADJUSTABLE - CLASSIC | - | |
46 71 8 396 526 | BRAKE LEVER, ADJUSTABLE - STORMAlternative for position 6 | - | ||
46 71 8 396 527 | BRAKE LEVER, ADJUSTABLE - CLUB-SPORTAlternative for position 6 | - | ||
| 8 | 46 71 8 396 528 | TOE PEDAL FOR BRAKE, ADJUSTABLE - CLASSIC | - | |
46 71 8 396 529 | TOE PEDAL FOR BRAKE, ADJUSTABLE - STORMAlternative for position 8 | - | ||
46 71 8 396 530 | TOE PEDAL FOR BRAKE, ADJUSTABLE - CLUB-SPORTAlternative for position 8 | - | ||
| 9 | 46 71 8 396 620 | FOOTREST, RIGHT - CLASSIC | - | |
46 71 8 396 622 | FOOTREST, RIGHT - STORMAlternative for position 9 | - | ||
46 71 8 396 624 | FOOTREST, RIGHT - CLUB-SPORTAlternative for position 9 | - | ||
| 11 | 46 71 8 396 542 | HEEL GUARD, RIGHT - CLASSIC | - | |
46 71 8 396 544 | HEEL GUARD, RIGHT - STORMAlternative for position 11 | - | ||
46 71 8 396 546 | HEEL GUARD, RIGHT - CLUB-SPORTAlternative for position 11 | - | ||
| 12 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | - |

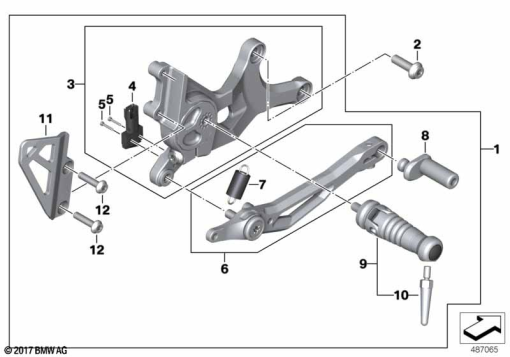

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
