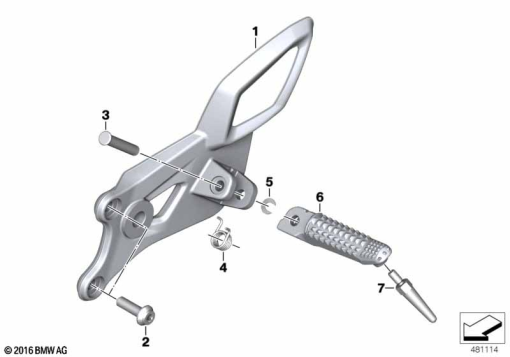

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 558 797 | FOOTREST PLATE, LEFT | - | |
46 71 8 558 798 | FOOTPEG PLATE RIGHTAlternative for position 1 | - | ||
| 2 | 07 12 9 907 382 | FILLISTER-HEAD SCREW - M8X25-8.8-ZNNIV | - | |
| 3 | 46 71 9 446 331 | PIN - D=8MM / L=40MM | - | |
| 4 | 46 71 7 711 221 | RETAINER SPRING | - | |
| 5 | 07 11 9 909 941 | CIRCLIP | - | |
07 11 9 901 545 | SECURING CLIPAlternative for position 5 | - | ||
| 6 | 46 71 7 708 631 | FOOTREST, LEFT | - | |
| - | 07 11 9 909 941 | CIRCLIP | - | |
| 6 | 46 71 7 708 632 | FOOTREST, RIGHT | - | |
| 7 | 46 71 8 563 745 | STOPPER | - |
