Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 22 8 392 274 | LABEL "NOISE INSTRUCTION" - USA (to 08/17) | - | |
71 22 8 404 396 | LABEL "NOISE INSTRUCTION" - USA (08/17 to 08/18)Alternative for position 1 | - | ||
71 22 9 467 825 | LABEL "NOISE INSTRUCTION" - USA (08/18 to 09/19)Alternative for position 1 | - | ||
71 22 1 541 045 | LABEL "NOISE INSTRUCTION" - USA (from 09/19)Alternative for position 1 | - | ||
| 2 | 71 22 1 541 048 | LABEL "EMISSION CONTROL INFORMATION" - USA / CANADA | - | |
71 22 8 357 889 | LABEL "EMISSION CONTROL INFORMATION" - USA / CANADA (to 08/17)Alternative for position 2 | - | ||
71 22 8 394 846 | LABEL "EMISSION CONTROL INFORMATION" - USA / CANADA (08/17 to 08/18)Alternative for position 2 | - | ||
71 22 9 467 828 | LABEL "EMISSION CONTROL INFORMATION" - USA / CANADA (from 08/18)Alternative for position 2 | - | ||
| 3 | 71 24 8 382 765 | TYPE PLATE - USA | - | |
| 4 | 71 24 8 382 747 | LABEL "TIRES" - USA / CANADA | - | |
| 11 | 71 24 8 382 763 | INSTRUCTION NOTICE, PAYLOAD - GER / ENG | - | |
| 13 | 71 21 2 332 219 | LABEL EUROPEAN PARTS | - |

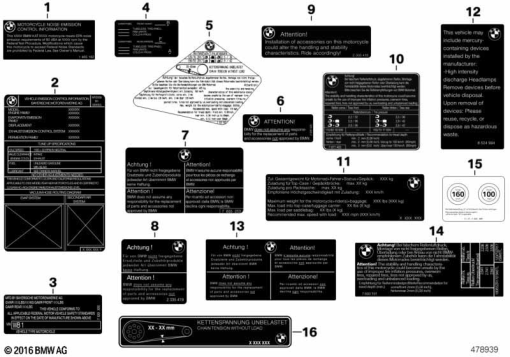

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
