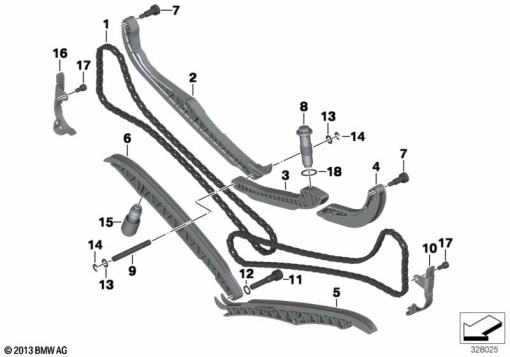

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 7 707 774 | SLEEVE CHAIN, SINGLE | - | |
| 2 | 11 31 7 707 777 | GUIDE RAIL RIGHT | - | |
| 3 | 11 31 7 707 781 | LEFT CHAIN TENSIONER | - | |
| 4 | 11 31 7 711 495 | LEFT CHAIN TENSIONER | - | |
| 5 | 11 31 7 707 776 | GUIDE RAIL LEFT | - | |
| 6 | 11 31 7 707 782 | RIGHT CHAIN TENSIONER | - | |
| 7 | 11 31 7 710 888 | SPACER BOLT - M6X16 | - | |
| 8 | 11 31 7 707 797 | CHAIN TENSIONER, LEFT | - | |
| 9 | 11 31 7 668 224 | BOLT - L=76,4 | - | |
| 10 | 11 31 7 707 787 | CHAIN GUIDE, LEFT | - | |
| 11 | 11 31 7 685 312 | ISA SCREW - M10X50 | - | |
| 12 | 07 11 9 900 244 | GASKET RING - A10X15-AL | - | |
| 13 | 11 31 1 460 923 | SHIM - 8,2X14X1,2 | - | |
| 14 | 07 11 9 905 695 | CIRCLIP - 6,0-ZNS3 | - | |
| 15 | 11 31 7 707 798 | CHAIN TENSIONER, RIGHT | - | |
| 16 | 11 31 7 707 792 | CHAIN GUIDE, RIGHT | - | |
| 17 | 07 12 9 905 037 | ISA SCREW - M6X12 ZNS3 | - | |
| 18 | 07 11 9 963 342 | GASKET RING - A20X24-CU | - |
