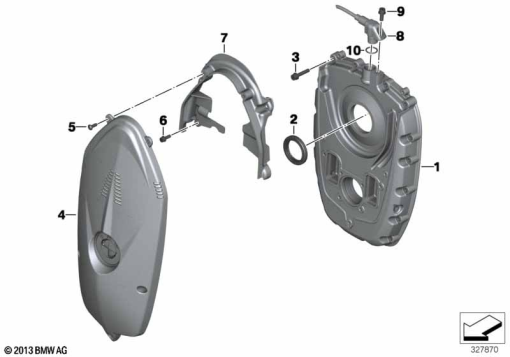

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 7 719 509 | GEAR BOX GEAR, BLACK | - | |
| 2 | 11 11 8 528 387 | SHAFT SEAL - 36X50X7 | - | |
| 3 | 07 12 9 905 537 | ISA SCREW WITH WASHER - M6X30-U0-8.8 | - | |
| 4 | 11 14 7 675 089 | COVERING WITH BADGE | - | |
| 5 | 51 13 7 057 671 | TORX-BOLT FOR PLASTIC MATERIAL - TS5X15 | - | |
| 6 | 07 12 9 905 120 | ISA SCREW - M5X16-U1-8.8 | - | |
| 7 | 11 14 7 690 747 | BELTGUARD | - | |
| 8 | 12 72 7 674 201 | CRANKSHAFT SENSOR | - | |
| 9 | 07 12 9 904 819 | TORX-BOLT WITH WASHER - M6X16-8.8-ZNNIV | - | |
| 10 | 12 72 7 694 011 | O-RING - 14X2 | - |
