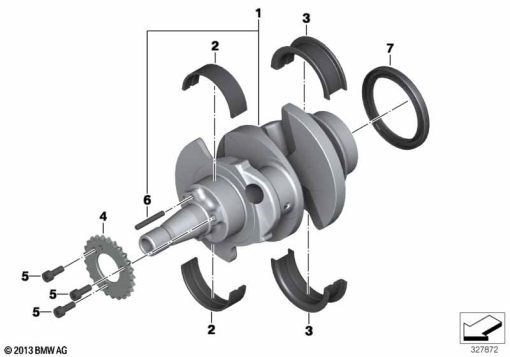

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 7 702 660 | CRANKSHAFT | - | |
| 2 | 11 21 8 521 865 | BEARING SHELL YELLOW - +0,25 | - | |
11 21 8 555 234 | BEARING SHELL GREEN - +0,25Alternative for position 2 | - | ||
11 21 8 555 231 | BEARING SHELL YELLOWAlternative for position 2 | - | ||
11 21 8 555 232 | BEARING SHELL GREENAlternative for position 2 | - | ||
| 3 | 11 21 8 555 238 | GUIDE-BEARING SHELL YELLOW - +0,25 | - | |
11 21 8 555 239 | GUIDE-BEARING SHELL GREEN - +0,25Alternative for position 3 | - | ||
11 21 8 555 236 | GUIDE-BEARING SHELL YELLOWAlternative for position 3 | - | ||
11 21 8 555 237 | GUIDE-BEARING SHELL GREENAlternative for position 3 | - | ||
| 4 | 11 31 7 669 893 | CRANKSHAFT SPROCKET | - | |
| 5 | 07 12 9 904 963 | ISA SCREW - M6X16 | - | |
| 6 | 07 11 9 904 918 | DOWEL PIN - 5X35MM | - | |
| 7 | 11 11 8 551 418 | SHAFT SEAL - 65X83X8 | - |
