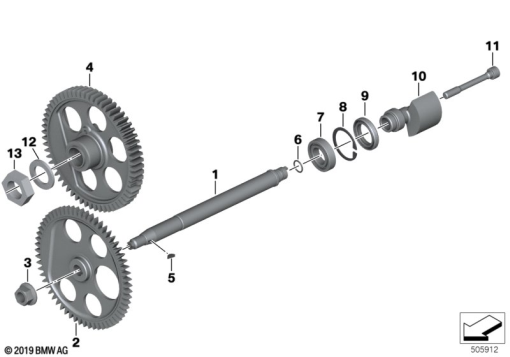

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 27 7 710 841 | COMPENSATING SHAFT | 1 | |
| 3 | 07 11 9 906 050 | HEX NUT - M12X1,5-10 ZNS3 | 1 | |
| 4 | 11 27 8 555 195 | GEAR WHEEL - Z=60 | 1 | |
| 5 | 07 11 9 951 430 | WOODRUFF KEY - 3X3,7 | 1 | |
| 6 | 11 27 7 702 625 | O-RING - 12X1,5 | 1 | |
| 7 | 11 27 7 675 034 | GROOVED BALL BEARING - 20X37X9 | 1 | |
| 8 | 07 11 9 934 675 | LOCK RING - 37X1,5 | 1 | |
| 9 | 11 11 7 721 848 | SHAFT SEAL - 25X37X6,5 | 1 | |
| 10 | 11 27 7 702 622 | BALANCE WEIGHT | 1 | |
| 11 | 11 27 7 686 883 | ISA SCREW - M8X70 | 1 | |
| 12 | 07 11 9 904 701 | WASHER - 22-200 HV-ZNS3 | 1 | |
| 13 | 07 11 9 906 234 | NUT - M22X1,5-05-ZNS3 | 1 |
