R nineT Racer (K32) | Engine Electrics

IGNITION SYSTEM

Diagram #12_1259 | 4 parts

100%

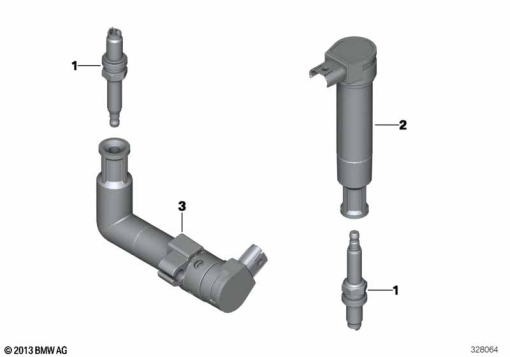

R nineT Racer (K32) IGNITION SYSTEM exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
12 12 7 726 112
SPARK PLUG - MAR8B-JDS1
2
12 13 8 560 173
SPARK-PLUG SHAFT IGNITION COIL1
3
12 13 8 565 079
ANGLED IGNITION COIL, LEFT1
3
12 13 8 565 080
ANGELD IGNITION COIL, RIGHT1
