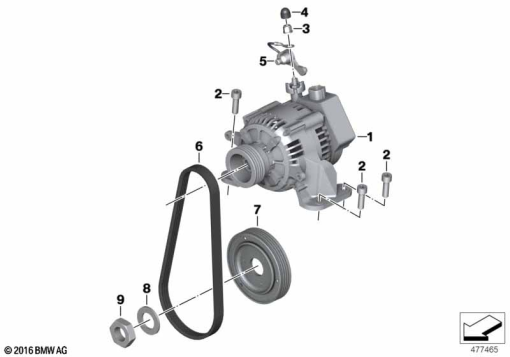

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 31 7 712 825 | ALTERNATOR - 60A DENSO | - | |
| 2 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | - | |
| 3 | 07 12 9 905 542 | HEX NUT WITH PLATE - AM6-8-ZNNIV SI | - | |
| 4 | 46 62 1 453 668 | PROTECTIVE CAP FOR B+ - M6 | - | |
| 5 | 12 31 7 680 683 | OVERVOLTAGE PROTECTION | - | |
| 6 | 11 31 8 528 385 | RIBBED V-BELT - 4PK582 | - | |
| 7 | 12 31 7 694 069 | PULLEY, CRANKSHAFT | - | |
| 8 | 07 11 9 904 701 | WASHER - 22-200 HV-ZNS3 | - | |
| 9 | 07 11 9 906 234 | NUT - M22X1,5-05-ZNS3 | - |
