R nineT Racer (K32) | Electrical System

RETAINING CLIPS, LINE CLIPS

Diagram #61_6232 | 3 parts

100%

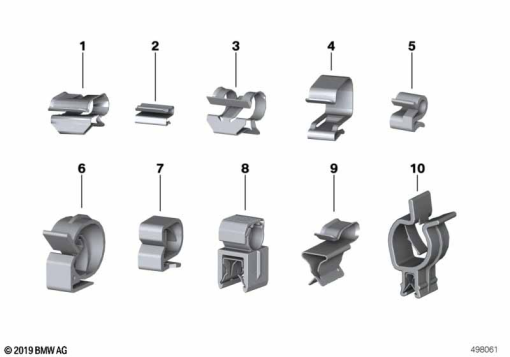

R nineT Racer (K32) RETAINING CLIPS, LINE CLIPS exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
07 14 7 547 239
FIXING CLAMP - A=3,5 - 6,0MM1
1
61 13 7 670 182
FIXING CLAMP1
2
07 14 7 566 122
FIXING CLAMP - A=4,0 - 4,5MM1
