R nineT Racer (K32) | Electrical System

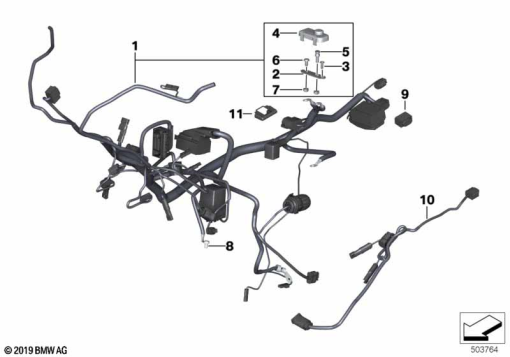

MAIN WRNG.HARNESS/REAR WRNG.HARNESS
Diagram #61_3273 | 11 parts
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 11 8 569 727 | MAIN WIRING HARNESS | - | |
| 2 | 61 11 8 562 057 | BASE B+ - L=50MM | - | |
| 3 | 07 14 9 149 273 | FILLISTER HEAD SCREW - 5X14 | - | |
| 4 | 61 11 8 562 059 | COVERING BASE B+ | - | |
| 5 | 61 21 8 537 798 | JUMP START TERMINAL - M6X14 ZNNI SI | - | |
| 6 | 07 14 7 691 336 | FILLISTER HEAD SCREW - ISA M6X12 | - | |
| 7 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 8 | 07 14 7 691 336 | FILLISTER HEAD SCREW - ISA M6X12 | - | |
| 9 | 61 13 7 668 405 | RESISTOR - 120 OHM | - | |
| 10 | 61 11 8 548 705 | TAIL PART WIRING HARNESS | - | |
| 11 | 61 13 8 543 851 | PROTECTION CAP | - |
