R nineT Racer (K32) | Cooling
OIL COOLER

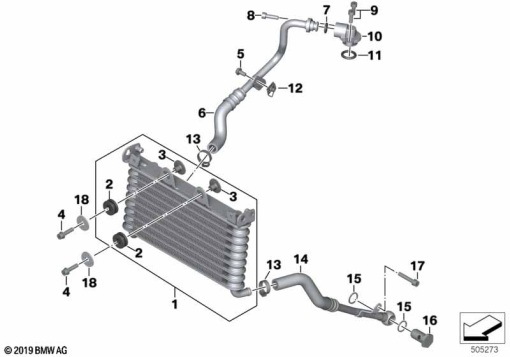

Diagram #17_0730 | 18 parts
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 21 8 409 648 | OIL COOLER | - | |
| 2 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 3 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 4 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | - | |
| 5 | 07 12 9 907 404 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV | - | |
| 6 | 17 22 8 543 237 | OIL COOLING PIPE INLET | - | |
| 7 | 17 22 7 680 667 | O-RING - 11,5X3 | - | |
| 8 | 07 12 9 904 588 | ISA SCREW - M6X16-8.8-ZNS3 | - | |
| 9 | 07 12 9 904 588 | ISA SCREW - M6X16-8.8-ZNS3 | - | |
| 10 | 17 22 8 548 197 | ADAPTER FOR OIL COOLER LINE | - | |
| 11 | 17 22 1 342 487 | O-RING - 19X4 | - | |
| 13 | 11 15 1 726 339 | HOSE CLAMP - 21,3MM | - | |
| 14 | 17 22 8 543 236 | OIL COOLING PIPE OUTLET | - | |
| 15 | 07 11 9 963 253 | GASKET RING - A16X20-CU | - | |
| 16 | 32 41 6 852 470 | HOLLOW BOLT - M16X28 | - | |
| 17 | 07 12 9 905 538 | ISA SCREW WITH WASHER - M6X35-ZNNIV SI | - | |
| 18 | 07 14 9 151 606 | WASHER - 6,4-25-1,5MM | - | |
| - | 17 21 8 409 648 | OIL COOLER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
