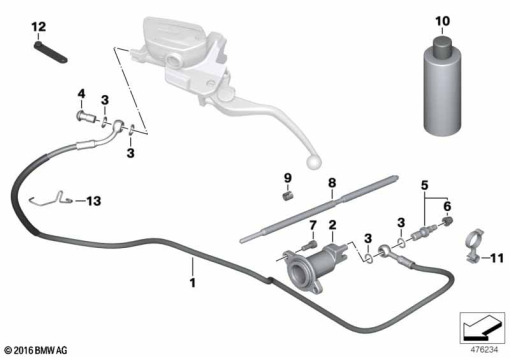

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 8 563 470 | CLUTCH LINE | 1 | |
| 2 | 21 52 7 724 542 | CLUTCH SLAVE CYLINDER - D=24 | 1 | |
| 3 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | 1 | |
| 4 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | 1 | |
| 5 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | 1 | |
| 6 | 34 21 2 314 001 | 34 21 2 314 001 | 1 | |
| 7 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 8 | 21 21 7 702 596 | PUSH ROD, SPHERICAL | 1 | |
| 9 | 23 21 1 230 440 | FELTRING | 1 | |
| 10 | 21 52 2 455 540 | TRANSMISSION OIL HYSPIN V10 - 250 ML | 1 | |
| 11 | 16 13 1 465 119 | HOSE CLAMP | 1 | |
| 12 | 61 13 7 723 698 | RUBBER TENSION STRAP - L=56MM | 1 |
