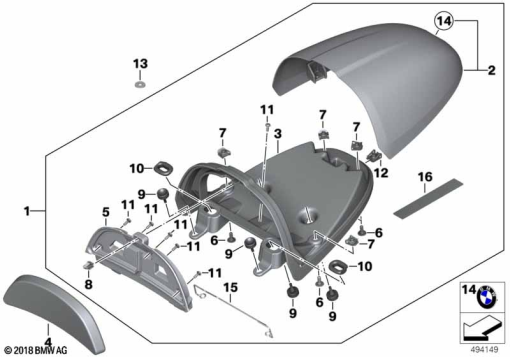

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 34 8 396 070 | SET: SET, CARBON HUMP COVER | - | |
77 34 8 533 901 | UPHOLSTERY FOR STORAGE COMPARTMENTAlternative for position 1 | - | ||
77 34 8 565 828 | HUMP COVER, ALUMINUMAlternative for position 1 | - | ||
77 34 8 533 901 | UPHOLSTERY FOR STORAGE COMPARTMENTAlternative for position 1 | - | ||
52 53 8 558 317 | RETAINER FOR HUMP COVERAlternative for position 1 | - | ||
77 34 8 396 069 | SET: SET HUMP COVER ALUMINUMAlternative for position 1 | - | ||
77 34 8 533 901 | UPHOLSTERY FOR STORAGE COMPARTMENTAlternative for position 1 | - | ||
| 2 | 77 34 8 396 070 | SET: SET, CARBON HUMP COVER | - | |
| 3 | 77 34 8 565 829 | BASEPLATE FOR STOOL | - | |
| 4 | 77 34 8 533 901 | UPHOLSTERY FOR STORAGE COMPARTMENT | - | |
77 34 8 564 531 | UPHOLSTERY FOR STORAGE COMPARTMENT - ALCANTARAAlternative for position 4 | - | ||
| 5 | 77 34 8 565 830 | MOUNT FOR STORAGE-COMPARTMENT COVER | - | |
| 6 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | - | |
| 7 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 8 | 52 53 8 393 655 | MOUNTING CLIP BLACK | - | |
| 9 | 52 53 2 347 534 | RUBBER SUPPORT - D=18MM | - | |
| 10 | 13 71 7 686 917 | RUBBER GROMMET | - | |
| 11 | 07 12 9 907 533 | SCREW - TS4X10MM | - | |
| 12 | 07 14 7 133 884 | BODY NUT - M6 | - | |
| 13 | 51 17 7 003 230 | WASHER - 6,4X16X2-SW | - | |
| 14 | 51 14 2 328 447 | BADGE - D=27MM | - | |
| 15 | 52 53 8 558 317 | RETAINER FOR HUMP COVER | - | |
| 16 | 71 60 8 533 904 | RETAINING STRAP STORAGE COMPART.COVER | - |
