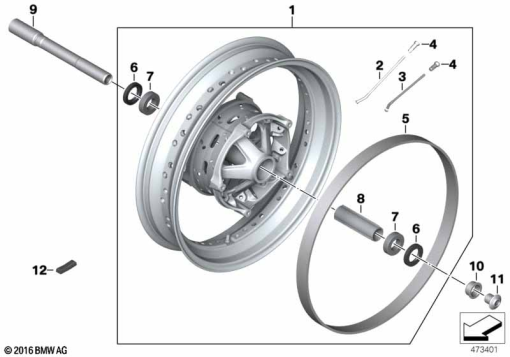

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 562 551 | SPOKE WHEEL, BLACK FRONT - 3,5X17 | - | |
| 2 | 36 31 8 562 541 | SPOKE, INSIDE - L=127,2MM | - | |
| 3 | 36 31 8 562 542 | SPOKE, OUTSIDE - L=139,2MM | - | |
| 4 | 36 31 8 562 545 | NIPPLE - M4,5 | - | |
36 31 9 444 615 | NIPPLE - M4,5Alternative for position 4 | - | ||
| 5 | 36 31 8 562 553 | TIRE FLAP - 3,5X17 | - | |
| 6 | 36 31 8 561 711 | SHAFT SEAL - AS30X47X7 | - | |
| 7 | 36 31 8 531 207 | GROOVED BALL BEARING - 25X47 | - | |
| 8 | 36 31 8 551 385 | SPACER BUSH - D=25.5 L=105 | - | |
| 9 | 36 31 7 925 193 | QUICK-RELEASE AXLE | - | |
| 10 | 36 31 8 544 127 | BUSH | - | |
| 11 | 36 31 8 561 528 | SCREW - M20X1,5 | - | |
| 12 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 12 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 12 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 12 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 12 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 12 | - |
